Figure Caption
Fig. S2

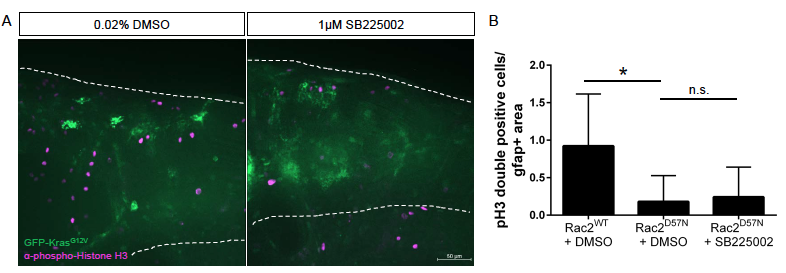

Cxcr1/2 inhibition with neutrophil-specific motility loss. Tg(mpx:mCherry-2a-Rac2WT) or Tg(mpx:mCherry-2a-Rac2D57N) embryos were injected with gfap:GFP-krasG12V and treated with 1μM SB225002 or DMSO control as described in Figure 4. Larvae were fixed at 3 dpf and immunostained for phospho-Histone H3 (A). pH3-GFP double positive cells were quantified by optical section and normalized as above (B, n= 10 Rac2WT + DMSO, 19 Rac2D57N + DMSO, 17 Rac2D57N + SB225002). Data pooled from 2 replicates, *p<0.05.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Sci. Rep.
