Figure Caption
Fig. S8

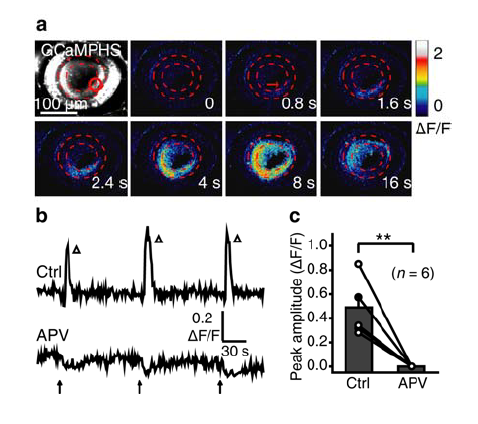

Glutamate uncaging at BC ATs evokes NMDAR-dependent BC calcium waves.
(a) BC calcium wave evoked by 0.5-s uncaging of glutamate (started at time zero) at a cluster of BC ATs in the temporal-ventral retina (red circle) of a 3-dpf Tg(Gal4-VP16xfz43,UAS:GCaMP1.6) larva. Scale, 100 μm.
(b and c) Example (b) and summary (c) showing the effect of APV application (100 μM) on glutamate uncaging-induced BC calcium waves.
**P < 0.01; two-tailed paired Student’s t-test. Data are represented as mean ± s.e.m.
