Figure Caption

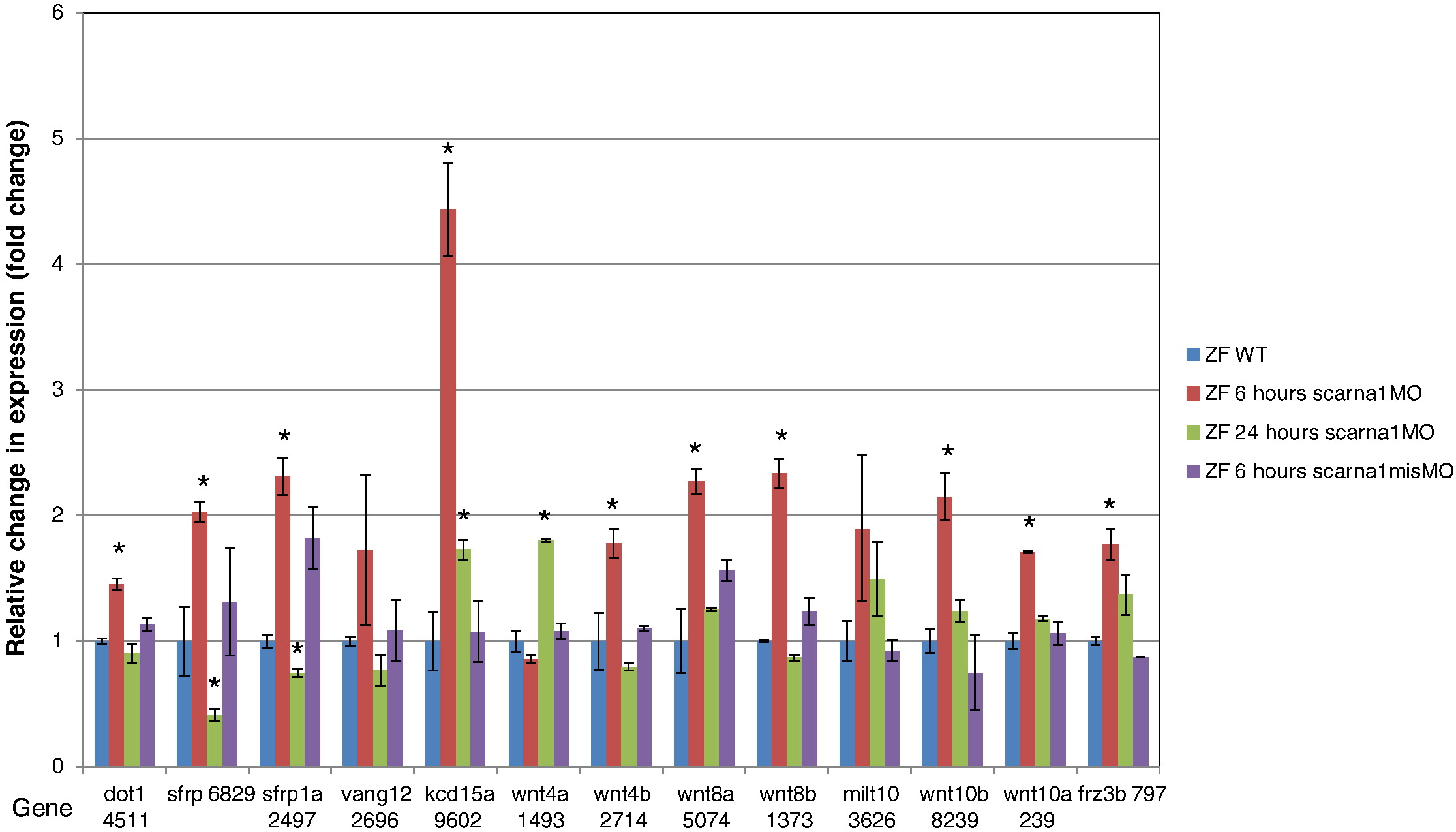

Fig. 8

Splice isoform changes after targeting scarna1. Treating zebrafish embryos with anti-scarna1 morpholino causes changes in exon retention of cardiac regulatory genes. 13 of 39 members of the Wnt family have significant changes in exon retention after treatment with antisense morpholino (assessed by RNA-Seq and qRT-PCR, values shown are from qRT-PCR data quantifying the variable exon). The misMO oligo is a negative control that differs from the primary morpholino by 5 nucleotides in the critical binding site. The gene name is shown on the horizontal axis and the numbers represent the start position of the exon. *Significantly different from the WT, p < 0.05.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Biochimica et biophysica acta. Molecular basis of disease, 1852(8), Patil, P., Kibiryeva, N., Uechi, T., Marshall, J., O'Brien, J.E., Artman, M., Kenmochi, N., Bittel, D.C., scaRNAs Regulate Splicing and Vertebrate Heart Development, 1619-29, Copyright (2015) with permission from Elsevier. Full text @ BBA Molecular Basis of Disease
