Genes
Source
Figures for Giousoh et al., 2015
Figure Caption

Fig. 6

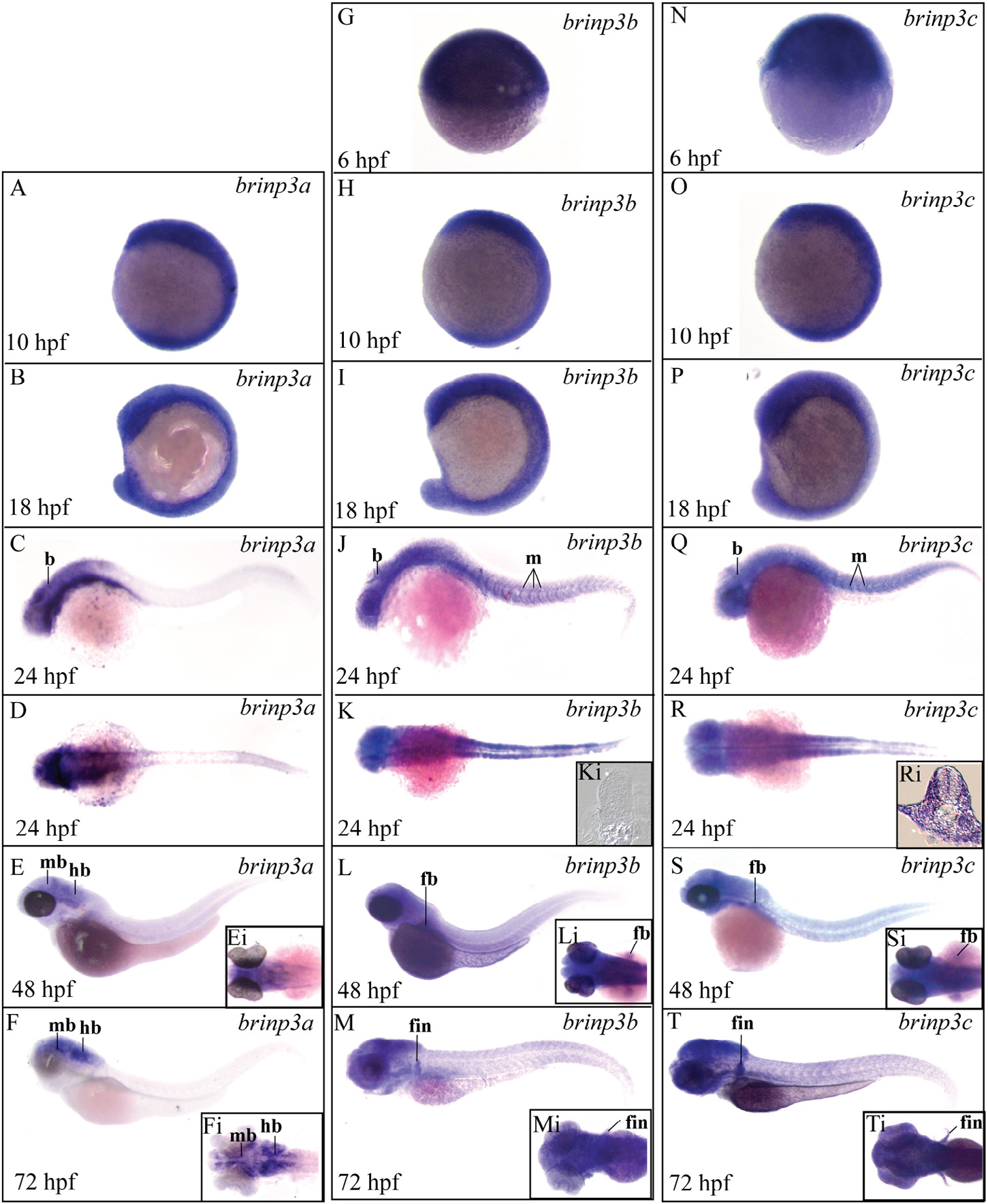

Spatial expression patterns of brinp3 paralogues (a, b and c) during zebrafish development. All brinp3 genes are expressed between 10 and 18 hpf (A, B, G, H, I, N, O, P) ubiquitously. brinp3b and brinp3c are broadly expressed at shield (6 hpf) (G, N). brinp3a is predominately expressed in the brain (b) at 24 hpf (C) and localises to specific parts of the brain at 48 hpf (E,Ei) and 72 hpf (F,Fi). brinp3b is mainly expressed in the brain at 24 hpf (J, K, Ki) and is highly expressed in the mid brain and hindbrain of 48–72 hpf embryos (L, M) and primordial pectoral fin buds (fb). brinp3c has a similar pattern to brinp3b (Q–T), except cross sections of 24 hpf embryos reveal brinp3c is expressed (Ri) in the muscle, whereas no specific muscle staining was observed for brinp3b (Ki). Lateral (C, E, F, J, L, M, Q, S, T) and dorsal (D, Ei, Fi, K, Li, Mi, R, Si, Ti) views are shown.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 18(1-2), Giousoh, A., Vaz, R., Bryson-Richardson, R.J., Whisstock, J.C., Verkade, H., Bird, P.I., Bone morphogenetic protein/retinoic acid inducible neural-specific protein (brinp) expression during Danio rerio development, 37-43, Copyright (2015) with permission from Elsevier. Full text @ Gene Expr. Patterns
