Fig. S7

ID
ZDB-IMAGE-140211-20
Source
Figures for Yeh et al., 2013
Figure Caption

Fig. S7

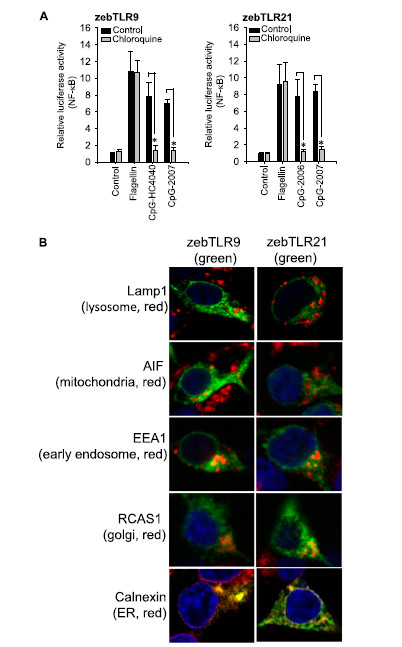

Intracelullar activation and localization of zebTLR9 and zebTLR21. (A) HEK293 cells were cotransfected with expression vector for zebTLR9 (Left) and zebTLR21 (Right) and NF-κB luciferase reporter gene. These cells were pretreated with 2 μM chloroquine, and then treated with 0.2 μg/mL flagellin and 3 μM CpG-ODN. Relative luciferase activities were determined. Data are mean ± SD (n = 3). *P < 0.05 vs. cells without chloroquine treatment. (B) HEK293 cells were transfected with expression vector for zebTLR9 and zebTLR21. Expression of zebTLR9 and zebTLR21 was visualized by immunofluorescence staining using anti- FLAG M2 mAb, followed by an Alexa Fluor 488-labeled anti-mouse antibody. Cellular organelles were stained by anti-Lamp1, anti-AIF, anti-EEA1, anti-RCAS1, and anti-calnexin antibodies, followed by an Alexa Fluor 594-labeled secondary antibody. Nuclei were stained by DAPI. Representative merged confocal images are shown for the cellular localization of zebTLR9 and zebTLR21. Green indicates zebTLR9 or zebTLR21; red, organelle markers; blue, nuclei stained with DAPI.
