Fig. 3

ID
ZDB-IMAGE-140107-54
Source
Figures for Weijts et al., 2013
Figure Caption

Fig. 3

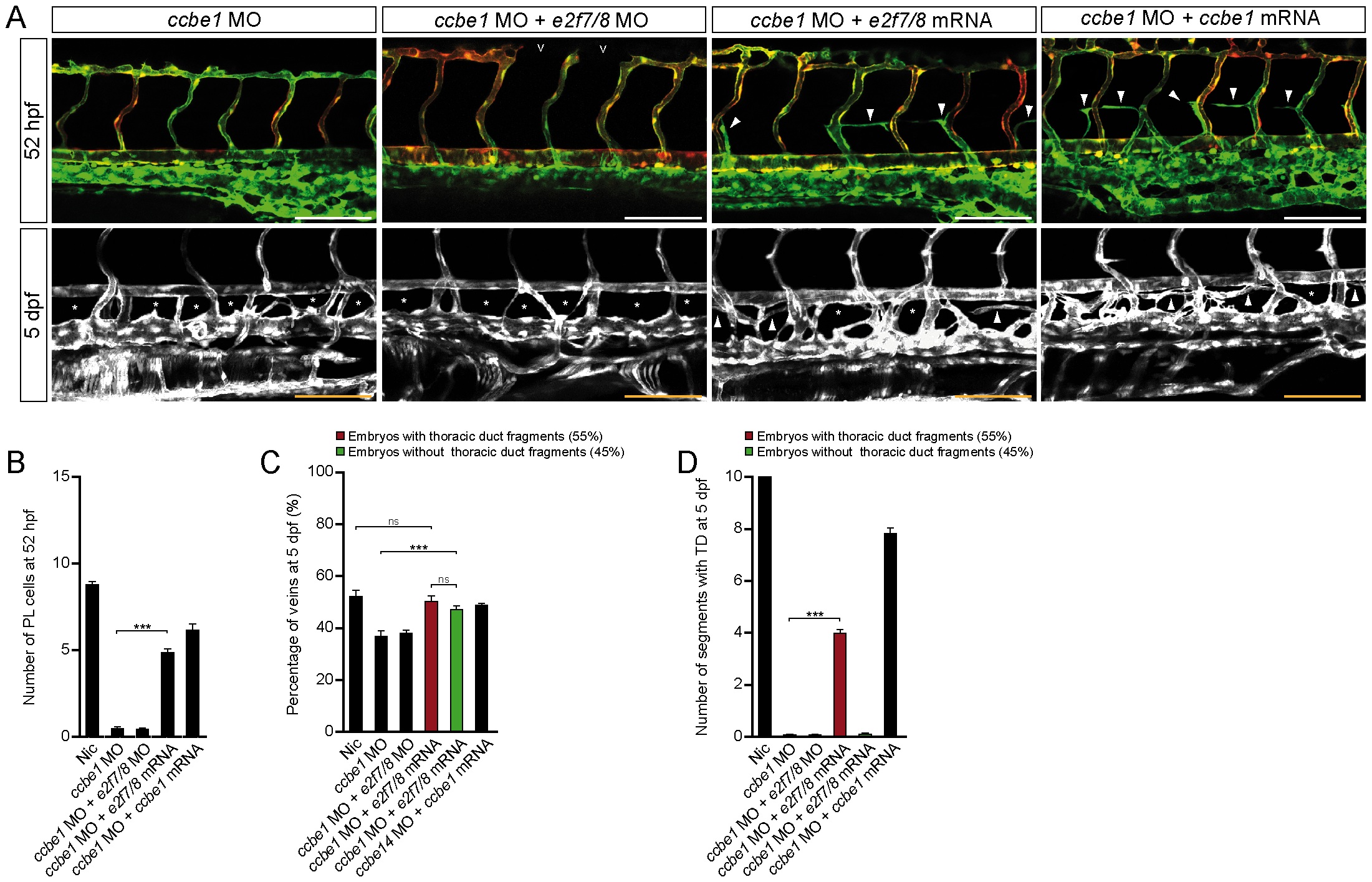

Figure 3. E2f7/8 rescued Ccbe1dependent lymphangiogenesis phenotype.

A, Representative images of Tg(fli1a:gfp;flt1enh:rfp) un-injected control embryos (nic) or embryos injected with e2f7/8 MOs or mRNA. B, C, D, Quantification of the indicated parameters. Concentrations: e2f7/8 MOs (10 ng each); ccb1 MO (5 ng); e2f7/8 mRNA (100 pg each); ccbe1 mRNA (100 pg).Open arrow heads indicate in (A; upper panel) missing dorsal longitudinal anastomotic vessels. Closed arrow heads indicate (upper panel in A) PLs or (lower panel, A) presence of the TD. All scale bars are 100 μm. Stars indicate missing TD fragments. Data presented as the average (±s.e.m.) compared to the control condition in three independent experiments (*** P<0.001). At least n = 150 embryos per condition in three independent experiments were used for A–D.
