Fig. S4

ID
ZDB-IMAGE-130827-33
Source
Figures for Wythe et al., 2013
Figure Caption

Fig. S4

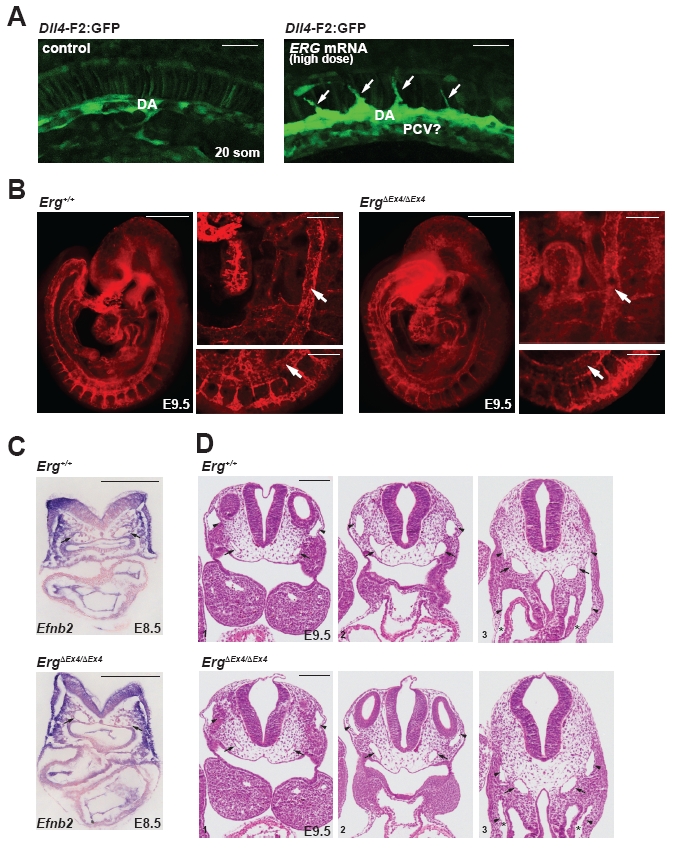

Figure S4 (Related to Figure 4): Analysis of ERG gain- and loss-of-function phenotypes. (A) Injection of high doses of ERG mRNA (400 pg) in zebrafish embryos resulted in enhanced F2:GFP expression at the 20-somite stage. Premature sprouting of intersomitic vessels (arrows) was also observed. Cells were present ventral to the dorsal aorta that express F2:GFP. These may be ventrally sprouting posterior cardinal vein cells. Scale bar = 50 μm. (B) Wild-type (n=2) and ErgΔEx4/ ΔEx4 (n=2) embryos (E9.5) were stained with PECAM antibodies and confocal microscopy was utilized to observe vascular patterning. The dorsal aorta (arrow) was present and morphologically normal in Erg knock-out embryos. Scale bars = 500 μm (wholemount) and 110 μm (zoom ins). (C) Section in situ hybridization at E8.5 reveals reduced Efnb2 mRNA in the dorsal aorta (arrows) in Erg knock out embryos (n=2) compared to wild-type littermates (n=2). Sections are counter-stained with nuclear fast red. Scale bar = 100 μm. (D) Histology of serial cross-sections through wild-type (n=3) and Erg knock-out embryos (E9.5) (n=2) did not reveal gross morphological defects in arteries or veins. Dorsal aorta (arrow); cardinal vein (caret). Scale bar = 100 μm.
