Fig. S1

ID
ZDB-IMAGE-130827-30
Source
Figures for Wythe et al., 2013
Figure Caption

Fig. S1

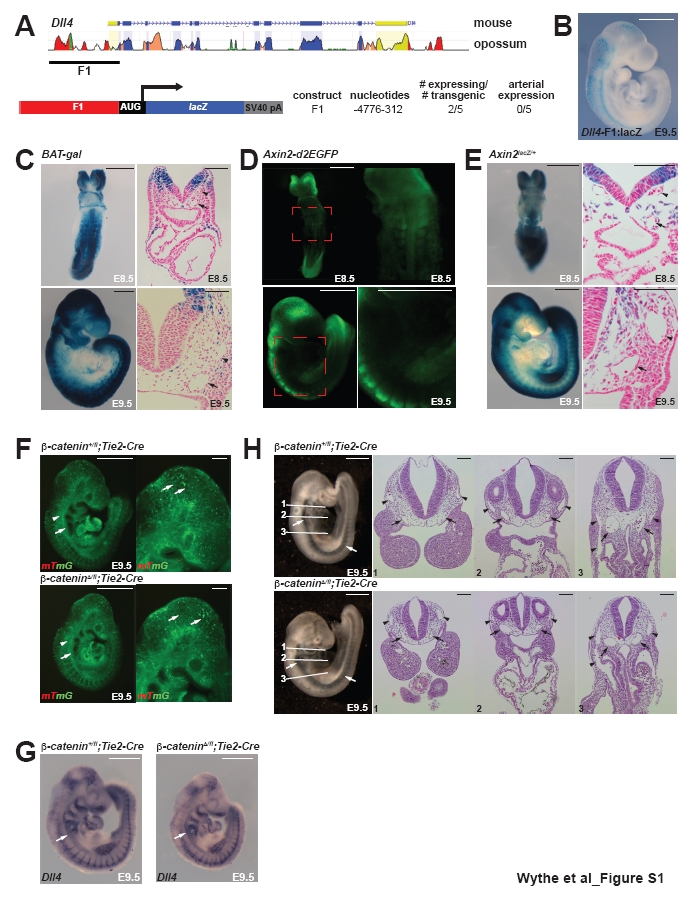

Wnt/β-Catenin signaling is not active in early arteries and does not regulate early Dll4 expression. (A) Conservation between murine and opossum Dll4 with location of fragment 1 (F1) indicated. Transgenic analysis of F1-lacZ (E9.5) is below. (B) Representative whole-mount F1-lacZ transgenic embryo. (C) Wholemount (left) and transverse sections (right) of BAT-gal embryos at E8.5 (n=5) and E9.5 (n=4). Dorsal aorta (arrow); cardinal vein (caret). (D) Whole-mount (left) and zoomed-in (right) Axin2-d2EGFP embryos at E8.5 (n=6) and E9.5 (n=8). (E) Whole-mount (left) and transverse sections (right) of Axin2nlacZ/+ embryos at E8.5 (n=3) and E9.5 (n=5). (F) Vascular patterning in endothelial-specific Ctnnb1 (β-catenin) loss-of-function (ECKO) embryos was normal, as visualized by Cre-mediated recombination of a GFP reporter allele (Rosa26-mTomato-lox-stop-lox-mGFP [mTmG]) (left). The dorsal aorta (arrow) and cardinal vein (caret) are indicated. A zoomed-in view (right) of the brain vasculature demonstrates a less remodeled vascular plexus (indicated by arrows) in the ECKO (n=7) embryonic brain compared to control (n=10) embryos. (G) Dll4 in situ hybridization indicates normal expression in the dorsal aorta (arrow) of Ctnnb1 ECKO embryos (n=4). (H) No defects in arteriovenous morphology in Ctnnb1 null (n=5) embryos were observed, as assessed by ink injection (as ink filled the entire dorsal aorta (arrows)) and H&E histology of serial cross-sections through the rostral and caudal planes of the dorsal aortae and cardinal veins. Dorsal aorta (arrow); cardinal vein (caret). Scale bars: 500 μm (B-H, whole-mount), 100 μm (C-H, sections and zoom ins).
