Fig. 2

ID
ZDB-IMAGE-091113-15
Source
Figures for Elsen et al., 2009
Figure Caption

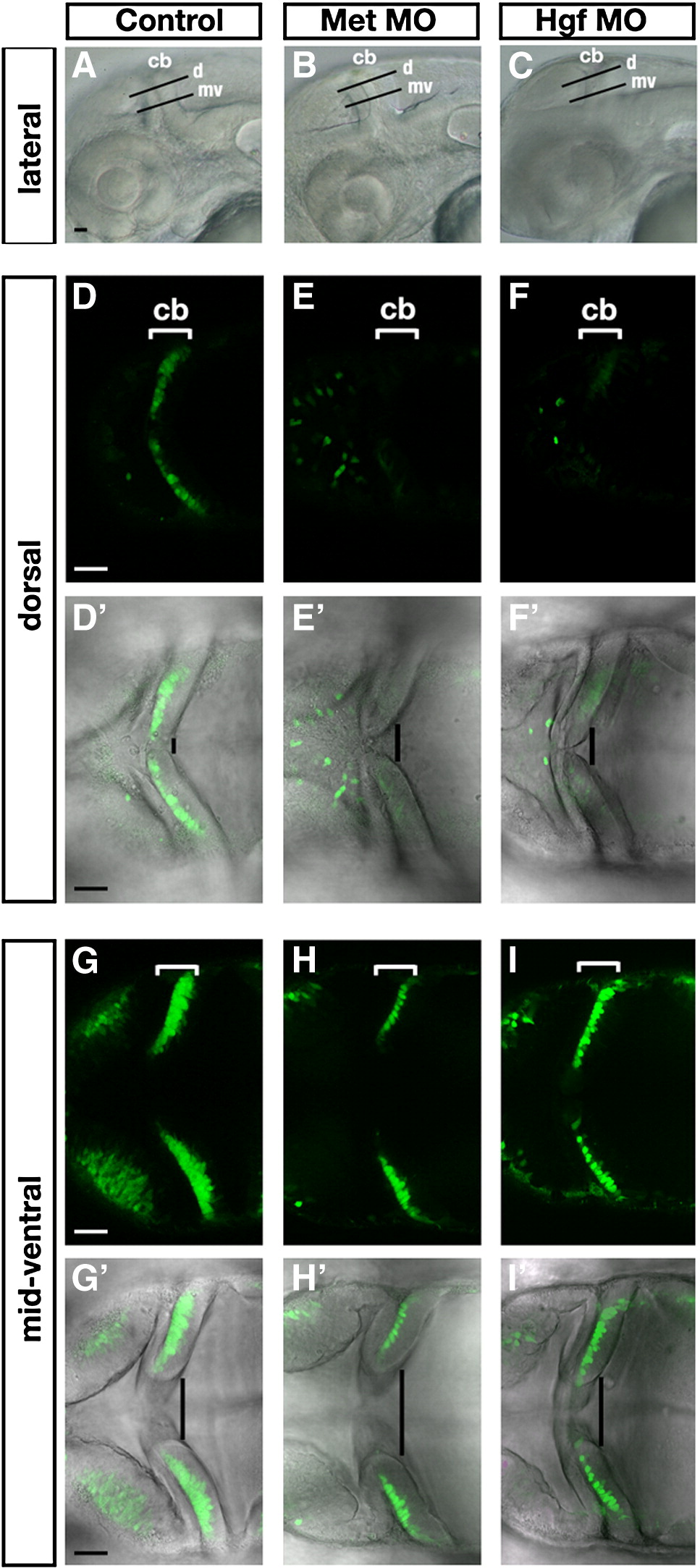

Fig. 2 Abnormal cerebellar morphology and reduction of differentiated neurons in Met signaling morphants. (A–C) Lateral bright-field view of 48 hpf embryos illustrating the orientation of horizontal confocal sections shown in panels (D)–(I′) (d, dorsal) and (mv, mid-ventral) in (A) control, (B) Met morphants and (C) Hgf double morphants (Hgf1 + 2 MO). Anterior is to the left in all panels and dorsal up in (A)–(C). (D–I′) Horizontal confocal sections, dorsal view, through the midbrain and hindbrain in live 48 hpf HuC-GFP-positive embryos imaged in dorsal positions (D–F′) and mid-ventral positions (G–I′) in controls (D, D′, G and G′), Met morphants (E, E′, H and H′) and Hgf1 + 2 double morphants (F, F′, I and I′). Bright-field and fluorescence images were merged to show the presence of Hu-positive cells away from the proliferative zone (D′, E′, F′, G′, H′ and I′). The number of HuC-positive newly differentiated neurons is reduced in Met morphants (E and H) and Hgf double morphants (F and I) compared to controls (D and G). Cerebellar regions are indicated by white brackets (D–I), and dorsal cerebellar midline fusion is highlighted by a black line indicating the degree of morphological change (D′–I′) in Met morphants (E′ and H′) and Hgf double morphants (F′ and I′) compared to controls (D′ and G′). cb, cerebellum. Scale bar, 50 μm.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 335(1), Elsen, G.E., Choi, L.Y., Prince, V.E., and Ho, R.K., The autism susceptibility gene met regulates zebrafish cerebellar development and facial motor neuron migration, 78-92, Copyright (2009) with permission from Elsevier. Full text @ Dev. Biol.
