Fig. 7

ID
ZDB-IMAGE-080604-7
Genes
Source
Figures for Postel et al., 2008
Figure Caption

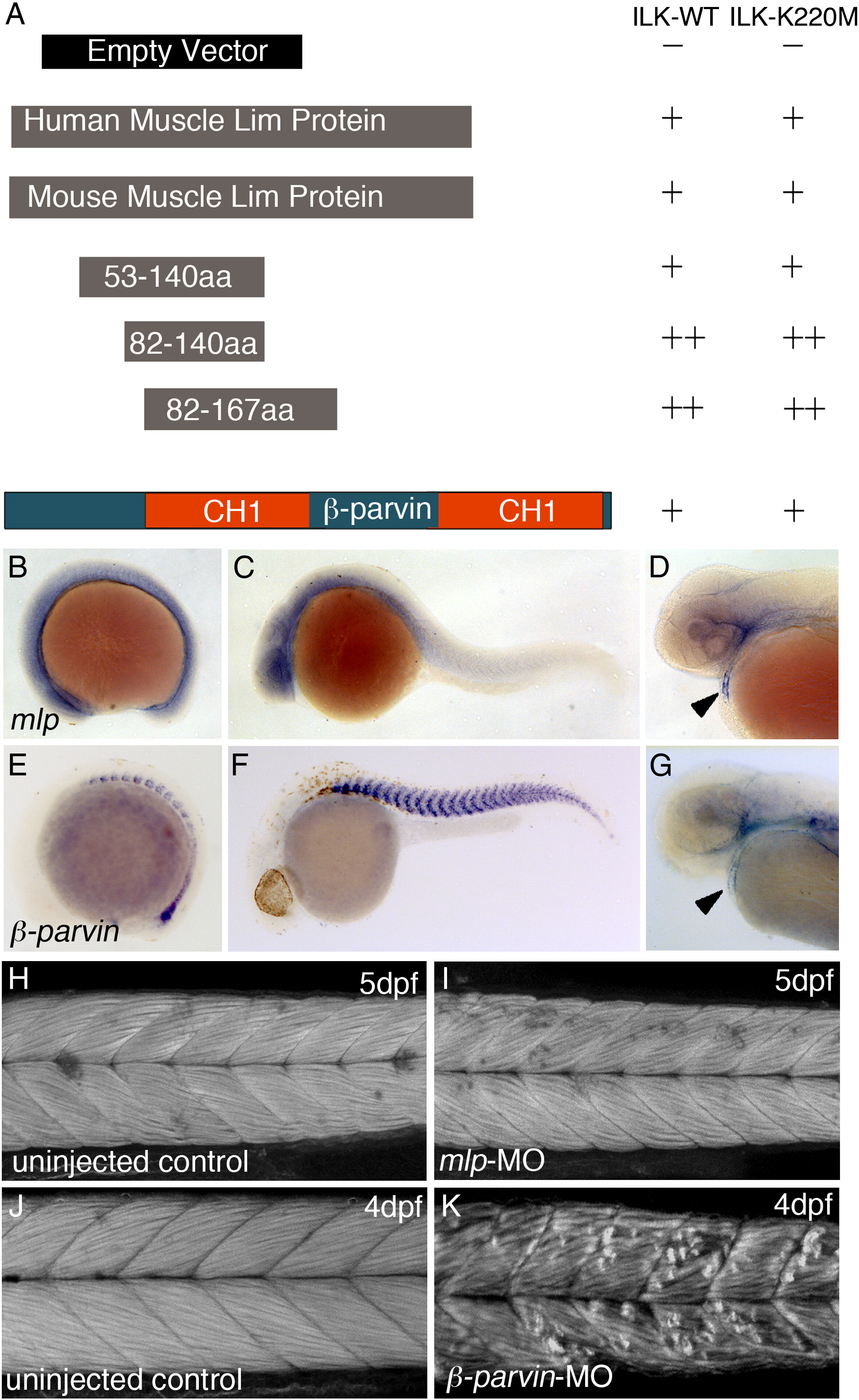

Fig. 7 In vitro interaction of ILK with MLP and β-parvin. (A) Yeast two hybrid analysis of ILK interaction with Muscle lim protein (MLP) and β-parvin: Schematic diagram illustrates the recombinant expressed MLP and the full-length β-parvin. Below the human MLP are the full-length and the deletion mutants of mouse origin that were generated to assess the interaction between ILK and MLP. Schematic representations are as follows Control empty plasmid pGBKT7, hMLP (full-length), mMLP (full-length) and various regions of mMLP, and full-length β-parvin. Quantification of the interaction was based on beta-galactosidase activity with growth on medium (+) and stringent (++) selection media (see also Materials and methods section and Supplementary Table 1). (B–D) In situ hybridization with dig-labelled antisense mlp probe at 15 somite stage (B), 24 hpf (C) and 48 hpf (D). Arrowhead marks mlp mRNA expression in the heart. (E–G) In situ hybridization with dig-labelled antisense β-parvin probe at 12 somite stage (E), 30 hpf (F) and 48 hpf. Arrowheads marks β-parvin expression in the heart (G). (H,I) Phalloidin staining of f-actin in 5 dpf wt non-injected embryo (H) compared to mlp/crp3 MO injected embryo (I). No muscle fibre defects were observed in mlp/crp3 MO injected embryos. (J,K) Phalloidin staining of f-actin in 4 dpf wt non-injected embryos (J) compared to β-parvin-MO injected embryos (K). Severe muscle fibre detachments were observed in β-parvin morphants.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 318(1), Postel, R., Vakeel, P., Topczewski, J., Knöll, R., and Bakkers, J., Zebrafish integrin-linked kinase is required in skeletal muscles for strengthening the integrin-ECM adhesion complex, 92-101, Copyright (2008) with permission from Elsevier. Full text @ Dev. Biol.
