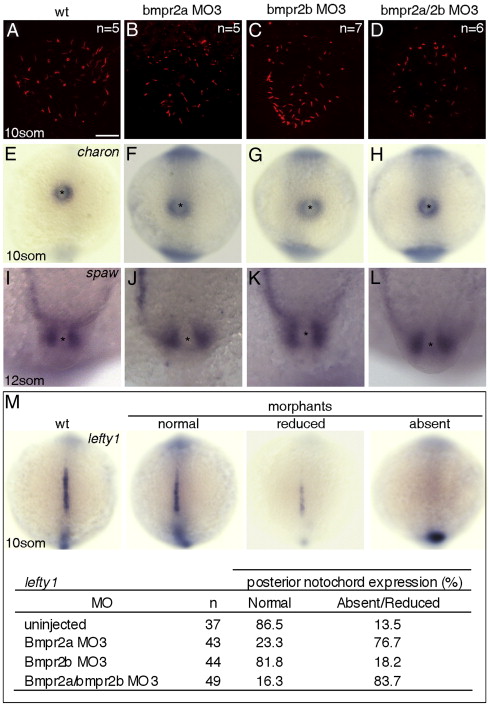

Fig. 8 Analysis of cilia integrity in KV and of gene expression of charon, spaw and lefty1 at 10-somite stage in bmpr2 morphants. Anti α-acetylated tubulin staining of KV cilia in wild type (A), bmpr2a (B), bmpr2b (C) and bmpr2a/bmpr2b morphants (D) at 10 somites. (E) Perinodal expression of charon in wild type embryos. Expression was unchanged in bmpr2a (F), bmpr2b (G) or bmpr2a/bmpr2b morphants (H). Perinodal spaw expression at 12 somites showed no differences between wild type (I) and bmpr2a (J), bmpr2b (K) or bmpr2a/bmpr2b morphants (L). (M) Analysis of lefty1 expression at 10 somites in the posterior notochord of bmpr2 morphants. (A–D) Scalebar 50 μm. (E–H, M) Dorsal view, posterior to the top. (I–L) Dorsal view, anterior to the top.
