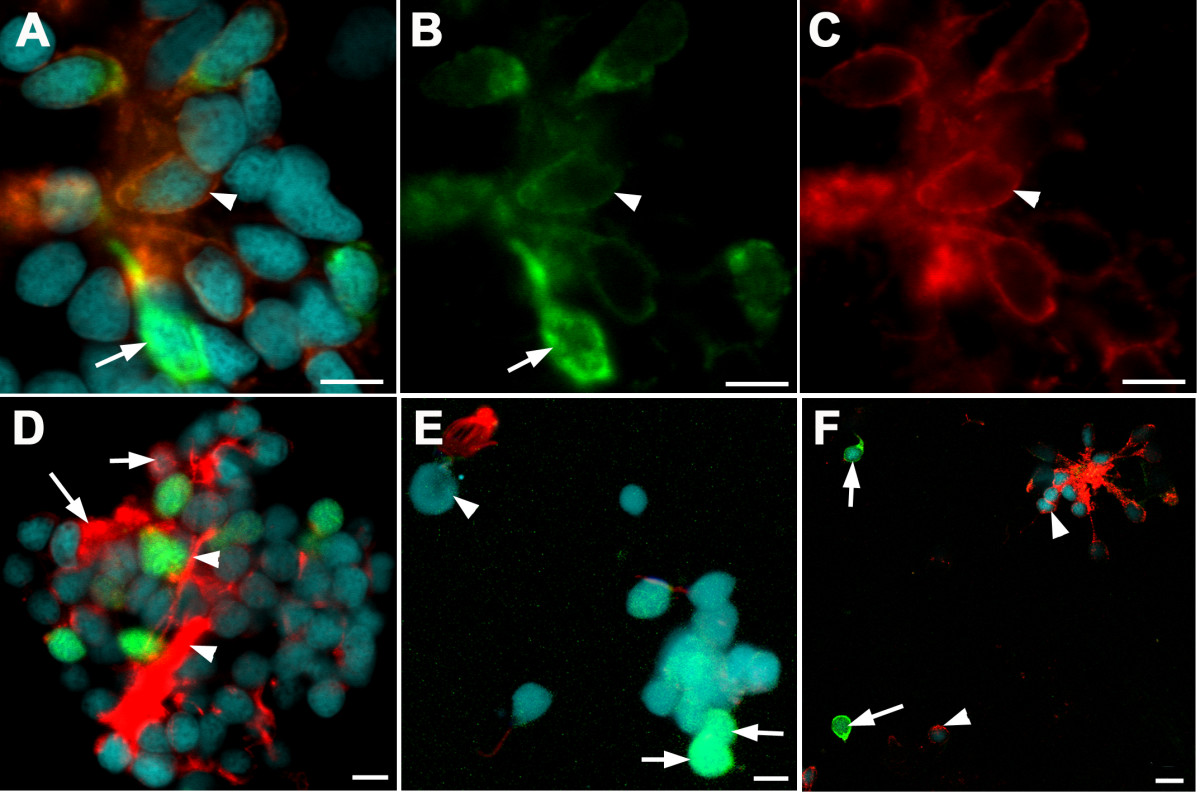

Fig. 3 Expression of G alpha subunits in larval olfactory neurons.(A-C) Gαo (red fluorescence, C) is present in a subset of Rag1-expressing cells (green fluorescence, B; arrowheads) isolated from the olfactory epithelium of a Rag1:GFP zebrafish. A cell with bright GFP (arrow), however, does not contain Gαo. (D) Gαq label in the dendrites, lacks GFP. Two cells with bright GFP (arrows), in contrast, lack Gαq label. (F) Gαolf label, seen here in axons and some cell bodies (arrowheads), was not detected in cells strongly expressing GFP (arrows). Bar = 5 µm (A-E); 10 µm (F).
