Fig. 2

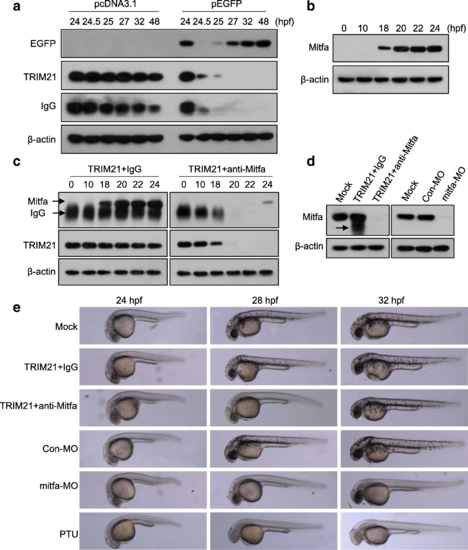

Degradation of Mitfa occurs 18 h after injection of TRIM21 and anti-Mitfa antibody. aEGFP expression plasmid or control pcDNA3.1 plasmid was injected into one-cell embryos. TRIM21 and anti-EGFP antibody were then co-injected into EGFP-expressing embryos or pcDNA3.1 plasmid-injected embryos at 24 hpf. The levels of EGFP, anti-EGFP antibody, and TRIM21 were analyzed by western blotting at different time points. bMitfa expression in zebrafish embryos was determined at different time points by western blotting. c One-cell embryos were co-injected with TRIM21 and an anti-Mitfa antibody or nonspecific IgG and analyzed for the levels of Mitfa, TRIM21, and IgG heavy chain at different time points by western blotting. d, e One-cell zebrafish embryos were injected with mitfa morpholinos (mitfa-MO) or control morpholinos (Con-MO) or co-injected with TRIM21/anti-Mitfa antibody or TRIM21/nonspecific IgG. Mitfa knockdown was confirmed at 22 hpf by western blotting; the arrow indicates IgG heavy chain (d). Lateral view of the embryos at different time points; embryos treated with N-phenylthiourea (PTU) were used as positive controls (e)

Expression Data
Antibody:
Fish:
Knockdown Reagent:
Anatomical Term:
Stage Range: 1-cell to Prim-5

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagent:
Observed In:
Stage Range: 26+ somites to Prim-15

Phenotype Detail
