Fig. 8

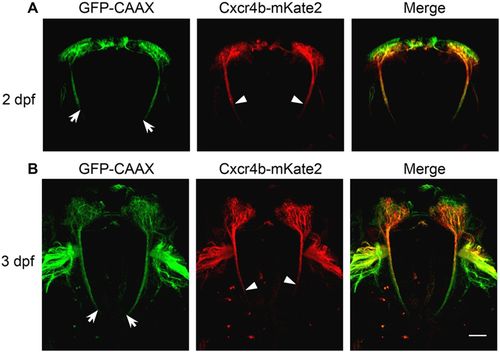

Chemokine signaling reporter labels newly born neurons and emerging axons. TgBAC(cxcr4b:cxcr4b-mKate2-IRES-GFP-CAAX) labeling at (A) 2 and (B) 3 dpf. GFP labels the membranes of dHb neurons and axons. The Cxcr4b chemokine receptor fusion protein (red) is found in neurons near the ventricular zone and on proximal (arrowheads) but not distal (arrows) regions of their axons. Scale bar: 50 µm.

Expression Data

Genes:	EGFP mKate2
Fish:	sk79Tg
Anatomical Terms:	dorsal habenular nucleus axon dorsal habenular nucleus neuron dorsal habenular nucleus ventro-medial region
Stage Range:	Long-pec to Protruding-mouth
