FIGURE

Fig. 8

ID
ZDB-FIG-170822-16
Publication
Kroeger et al., 2017 - The zebrafish kidney mutant zeppelin reveals that brca2/fancd1 is essential for pronephros development
Other Figures
All Figure Page
Back to All Figure Page

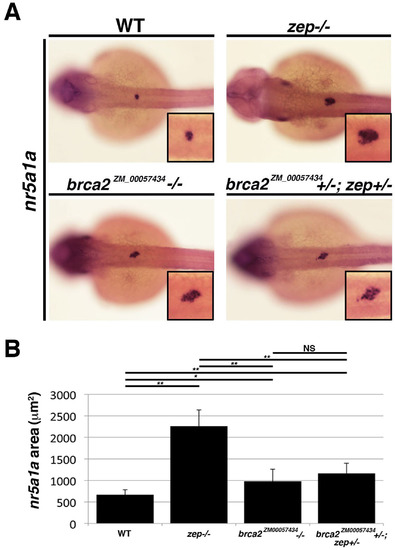

Fig. 8

zepandbrca2ZM_00057434fail to complement one another. (A) Gene expression analysis of the interrenal marker nr5a1a in WT, zep -/-, brca2ZM_00057434 -/- and compound heterozygous brca2ZM_00057434+/-; zep +/- mutants revealed that brca2ZM_00057434 -/- have a modest but (B) statistically significant elevation in the area of nr5a1a expression that was similar to compound heterozygous embryos. Embryos are shown in dorsal views with insets showing digital zoom of 150%, where black boxes demarcate the cervical region where the interrenal gland develops. Asterisks (*) indicate p < 0.05, (**) p < 0.01 using student T-test.

Expression Data
Gene:
Fish:
Anatomical Term:
Stage: Prim-25

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Observed In:
Stage: Prim-25

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 428(1), Kroeger, P.T., Drummond, B.E., Miceli, R., McKernan, M., Gerlach, G.F., Marra, A.N., Fox, A., McCampbell, K.K., Leshchiner, I., Rodriguez-Mari, A., BreMiller, R., Thummel, R., Davidson, A.J., Postlethwait, J., Goessling, W., Wingert, R.A., The zebrafish kidney mutant zeppelin reveals that brca2/fancd1 is essential for pronephros development, 148-163, Copyright (2017) with permission from Elsevier. Full text @ Dev. Biol.
