ZFIN ID: ZDB-FIG-170130-7
Sun et al., 2016 - Planar cell polarity genes Frizzled3a, Vangl2, and Scribble are required for spinal commissural axon guidance. BMC Neuroscience   17:83 Full text @ BMC Neurosci.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Antibody:
Fish:
Knockdown Reagent:
Anatomical Term:
Stage: Prim-15
PHENOTYPE:
Fish:
Knockdown Reagent:
Observed In:
Stage: Prim-15

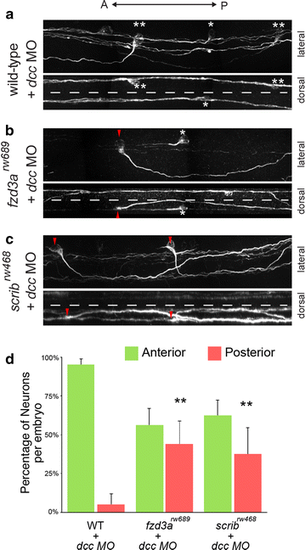

Fig. 4

Anterior guidance of CoPA axons in the absence of midline crossing is dependent on PCP proteins. a CoPA axons fail to cross the midline in dcc knockdown embryos yet still undergo anterior growth. In the lateral view, asterisk indicates affected CoPA that pathfinds anteriorly with no ventral growth. Double asterisk indicates affected CoPA that displays weak ventral extension followed by projection dorsally and anteriorly without crossing the midline. Dorsal view of the same spinal cord demonstrates that affected CoPAs are prevented from crossing the midline (dotted line), b, c CoPA axons in fzd3a rw689 and scrib rw468 embryos injected with dcc morpholinos also fail to cross the midline. Red arrowhead indicates uncrossed CoPA axons that grow posteriorly inappropriately in dcc-deficient fzd3a rw689 and scrib rw468 embryos. Asterisk indicates uncrossed CoPA axon that projects anteriorly. Dorsal views of the same spinal cords demonstrate that posteriorly projecting CoPAs fail to cross the midline (dotted line), d quantification of the anterior or posterior trajectory of uncrossed CoPA neurons in dcc-deficient WT, fzd3a rw689 , and scrib rw468 embryos. Error indicates SD. **p < 0.01 versus WT + dcc MO

Gene Expression Details No data available
Antibody Labeling Details
Antibody Assay Fish Conditions Stage Anatomy
Ab-3A10 IHC WT + MO1-dcc standard conditions Prim-15 CoPA
IHC fzd3arw689/rw689 + MO1-dcc standard conditions Prim-15 CoPA
IHC scribrw468/rw468 + MO1-dcc standard conditions Prim-15 CoPA
Phenotype Details
Fish Conditions Stage Phenotype
WT + MO1-dcc standard conditions Prim-15 commissural neuron axon guidance process quality, abnormal
Prim-15 CoPA axon extension involved in axon guidance decreased process quality, abnormal
Prim-15 CoPA neuron projection misrouted, abnormal
fzd3arw689/rw689 + MO1-dcc standard conditions Prim-15 commissural neuron axon guidance process quality, abnormal
Prim-15 CoPA anterior/posterior axon guidance decreased process quality, abnormal
Prim-15 CoPA neuron projection misrouted, abnormal
scribrw468/rw468 + MO1-dcc standard conditions Prim-15 commissural neuron axon guidance process quality, abnormal
Prim-15 CoPA anterior/posterior axon guidance decreased process quality, abnormal
Prim-15 CoPA neuron projection misrouted, abnormal
