Fig. 4

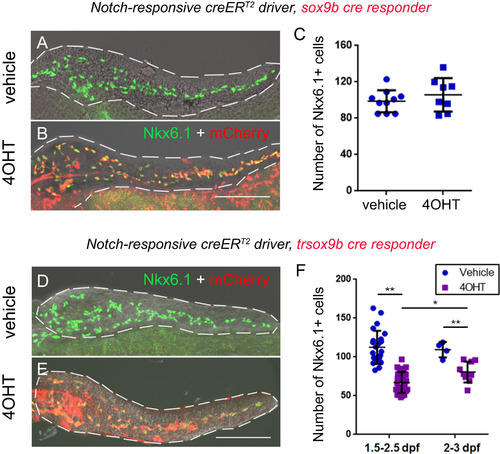

Inducible expression of Sox9b and truncated Sox9b in CAC pancreatic progenitors. (A, B and D, E) Confocal images of 5 dpf pancreata dissected from double transgenic larvae for the Notch-responsive creERT2driver and either sox9b cre-responder (A, B) or trsox9b cre-responder (D, E) showing localization of Nkx6.1 (green) and mCherry (red). Transgenic larvae were treated with vehicle (A, D) or 4OHT (B, E) from 2 to 3 dpf. The numbers of double positive (green/red) cells were quantified (C, F). Overexpression of Sox9b did not significantly affect numbers of Nkx6.1 positive CACs (C); however, 4OHT induction of trSox9b significantly reduced CAC numbers, an effect that was heightened if 4OHT treatment was performed even earlier in development (1.5-2.5 dpf, F). Scale Bar=100 µm, *p<0.05, **p<0.001.

Expression Data
Gene:
Antibody:
Fish:
Condition:
Anatomical Term:
Stage: Day 5

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Condition:
Observed In:
Stage: Day 5

Phenotype Detail
