Fig. 3

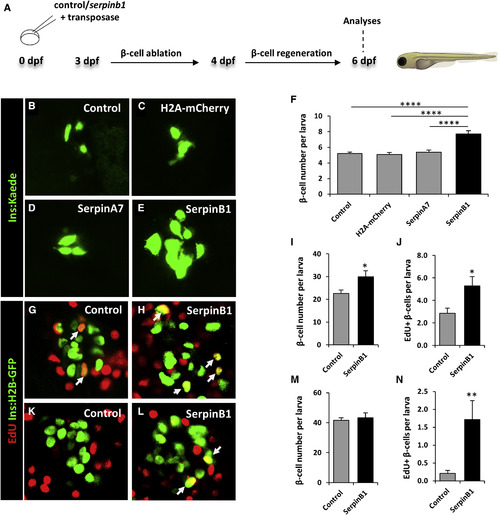

Overexpression of Serpinb1 in Zebrafish Enhances β Cell Regeneration and Proliferation

(A) Schematic of experimental plan.

(B–E) Representative images at 6 dpf of Tg(ins:kaede);Tg(ins:CFP-NTR) transgenic larvae that had not been injected (control), or were injected at the 1-cell stage with transposase mRNA + bactin:H2A-mCherry, bactin:serpina7, or bactin:serpinb1; were subjected to β cell ablation by metronidazole during 3–4 dpf; and were subsequently allowed to regenerate for 2 days.

(F) Quantification of β cell regeneration at 6 dpf in control (n = 87), bactin:H2A-mCherry-overexpressing (n = 61), bactin:serpina7-overexpressing (n = 46), and bactin:serpinb1-overexpressing (n = 36) Tg(ins:kaede);Tg(ins:CFP-NTR) larvae.

(G–J) Control (n = 27) and bactin:serpinb1-overexpressing (n = 18) Tg(ins:H2B-GFP);Tg(ins:Flag-NTR) transgenics were treated with metronidazole from 3 to 4 dpf to ablate the β cells and subsequently incubated with EdU during regeneration from 4 to 6 dpf. Representative confocal images at 6 dpf of control (G) and bactin:serpinb1-overexpressing (H) larvae showing β cells in green and the β cells that had incorporated EdU in yellow (green and red overlap; arrowheads). (I) Quantification of the total number of β cells at 6 dpf. (J) Quantification of β cells that incorporated EdU during β cell regeneration from 4 to 6 dpf.

(K–N) To determine whether Serpinb1 affects β cell proliferation during regular development, we treated control (n = 25) and bactin:serpinb1-overexpressing Tg(ins:H2B-GFP) (n = 21) transgenic larvae with EdU from 4 to 6 dpf. Representative confocal images at 6 dpf of control (K) and bactin:serpinb1-overexpressing (L) larvae showing β cells in green and the β cells that had incorporated EdU in yellow (green and red overlap; arrowhead). (M) Quantification of the total number of β cells at 6 dpf. (N) Quantification of β cells that incorporated EdU from 4 to 6 dpf. Data shown are the mean ± SEM; ****p < 0.0001, **p < 0.01, *p < 0.05. Arrows indicate proliferating cells.

Expression Data

Gene:	Kaede
Fish:	s892Tg; s949Tg
Condition:	chemical treatment: metronidazole
Anatomical Term:	pancreatic B cell
Stage Range:	Protruding-mouth to Day 4

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	s892Tg; s949Tg
Condition:	chemical treatment: metronidazole
Observed In:	pancreatic B cell
Stage:	Day 4

Phenotype Detail
