FIGURE

Fig. 5

ID
ZDB-FIG-150415-39
Publication
Dean et al., 2014 - Dbx1b defines the dorsal habenular progenitor domain in the zebrafish epithalamus
Other Figures
All Figure Page
Back to All Figure Page
Fig. 5

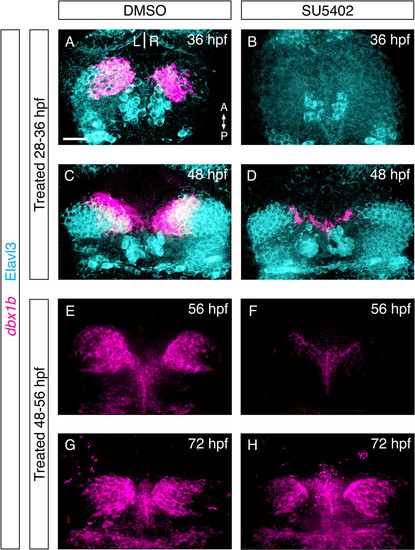

Sustained fibroblast growth factor (FGF) signaling is required for dbx1b expression. (A-D) Eight-hour treatment of embryos with the FGF receptor antagonist SU5402 abolished dbx1b expression, however expression began to return 12 hours after treatment. (E-H) Similar results were seen when FGF receptor blockade was initiated after dbx1b expression began. Generation of Elav3l-positive habenular cells resumed following drug washout at both early and late time points (D, H). Scale bars are 50 μm.

Expression Data
Genes:
Antibody:
Fish:
Condition:
Anatomical Terms:
Stage Range: Prim-25 to Protruding-mouth

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Condition:
Observed In:
Stage Range: Prim-25 to Long-pec

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Neural Dev.
