Fig. 1

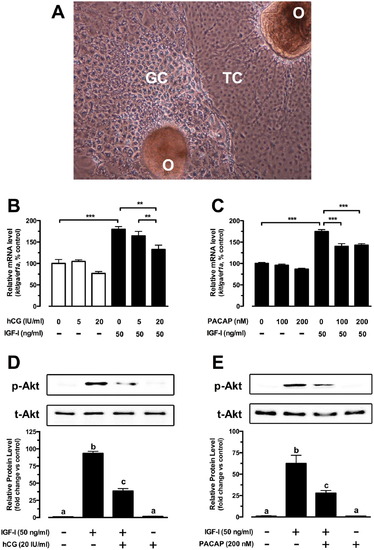

Effects of hCG and PACAP on kitlga expression and Akt phosphorylation. (A) Primary culture of zebrafish follicle cells at the end of a 6-day incubation. The oocytes were removed during sub-culturing. GC, granulosa cells; TC, theca cells; O, oocyte. (B and C) Effects of hCG and PACAP on kitlga expression. The follicle cells were treated with IGF-I (50 ng/mL), hCG (5 or 20 IU/mL) or PACAP (100 nM or 200 nM) alone or in combination for 6 h followed by total RNA extraction for real-time qPCR analysis. The data were normalized to the housekeeping gene, ef1a, and expressed as a percentage of the control group (mean ± SEM, n = 4). **P < 0.01; ***P < 0.001 versus control. (D and E) Effects of hCG and PACAP on Akt phosphorylation. Cultured zebrafish follicle cells were treated with IGF-I (50 ng/mL), hCG (20 IU/mL) and PACAP (200 nM) alone or in combination for 15 min followed by protein extraction for Western blot analysis. The densitometric quantification of the Western blot signals is shown at the bottom of each graph. The level of phosphorylated Akt (p-Akt) was normalized to that of total Akt (t-Akt) and expressed as the fold change compared with the control group (mean ± SEM, n = 3). Different letters indicate statistical significance (P < 0.05).

Expression Data
Gene:
Antibodies:
Fish:
Conditions:
Anatomical Term:
Stage: Adult

Expression Detail
Antibody Labeling
Phenotype Data

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Molecular and Cellular Endocrinology, 402, Yao, K., Ge, W., Differential regulation of Kit Ligand A (kitlga) expression in the zebrafish ovarian follicle cells - evidence for the existence of a cyclic adenosine 3', 5' monophosphate-mediated binary regulatory system during folliculogenesis, 21-31, Copyright (2015) with permission from Elsevier. Full text @ Mol. Cell. Endocrinol.
