Fig. 6

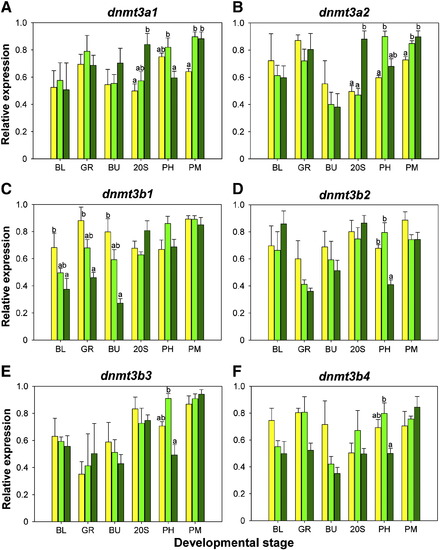

Relative expression of dnmt3a1 (A), dnmt3a2 (B), dnmt3b1(C), dnmt3b2 (D), dnmt3b3 (E) and dnmt3b4 (F) in zebrafish embryos incubated at 23 °C (yellow bars), 27 °C (light green bars) or 31 °C (dark green bars). Transcript levels were determined by qPCR and normalised within each developmental stage, using eef1a and b2m as endogenous reference genes. Error bars indicate the standard error of the mean for each treatment (n = 4). Different superscript letters indicate significant differences with embryonic temperature. Separate analyses were performed for each gene and developmental stage. Abbreviations are BL, blastula; GR, germ-ring; BU, bud; 20S, 20 somites; PH, start of pharyngula and PM, protruding mouth.

Expression Data
Genes:
Fish:
Anatomical Term:
Stage Range: High to Protruding-mouth

Expression Detail
Antibody Labeling
Phenotype Data

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene, 500(1), Campos, C., Valente, L.M., and Fernandes, J.M., Molecular evolution of zebrafish dnmt3 genes and thermal plasticity of their expression during embryonic development, 93-100, Copyright (2012) with permission from Elsevier. Full text @ Gene
