Fig. S2

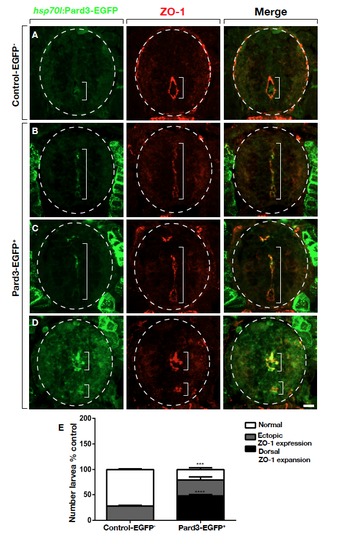

Pard3-EGFP Overexpression Phenocopies miR-219 Loss of Function

Representative spinal cord transverse images of 3 dpf heat-shocked control and heat-shocked Tg(hsp70l:pard3-EGFP) larvae processed for ZO-1 immunohistochemistry with dorsal to the top. (A) Control non-transgenic larva. ZO-1 is restricted to the central canal. (B and C) Examples of heat-shocked transgenic larvae showing strong Pard3-EGFP expression outside the spinal cord (outlined) and co-localized with ZO-1 to an apparent primitive lumen extending into dorsal spinal cord. (D) Example of a heat-shocked larva with an apparent double lumen (ectopic class) with co-localized Pard3-EGFP and ZO-1. (E) Graph showing number of larvae having dorsal expansion or ectopic co-localization of Pard3-EGFP (n=12 each for control and experimental) ***P=0.0002, ****P<0.0001. Scale bar equals 10 μm.

Expression Data

Gene:	EGFP
Antibody:	Ab1-tjp1
Fish:	WT co14Tg
Condition:	heat shock
Anatomical Terms:	lateral wall spinal cord lateral wall spinal cord apical plasma membrane spinal cord
Stage:	Protruding-mouth

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	co14Tg
Condition:	heat shock
Observed In:	central canal
Stage:	Protruding-mouth

Phenotype Detail
