FIGURE

Fig. S2

ID
ZDB-FIG-101011-45
Publication
Zanazzi et al., 2010 - Enrichment and differential targeting of complexins 3 and 4 in ribbon-containing sensory neurons during zebrafish development
Other Figures
All Figure Page
Back to All Figure Page
Fig. S2

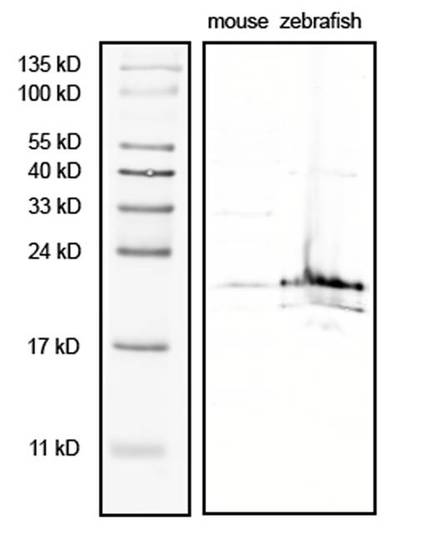

The complexin 3/4 antibody predominantly recognizes an approximately 20 kDa band on western blots. Adult mouse and zebrafish retinae were lysed in sample buffer containing protease inhibitors. Mouse extract (100 μg) and zebrafish extract (200 μg) were fractionated by SDS-PAGE (15% gel), blotted onto nitrocellulose, and probed with the complexin 3/4 polyclonal antibody (1:1,000). An approximately 20 kDa band is apparent in both mouse and zebrafish lysates. A minor band of approximately 17 kDa can also be observed in the zebrafish extract.

Expression Data
Antibody:
Fish:
Anatomical Term:
Stage: Adult

Expression Detail
Antibody Labeling
Phenotype Data

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Neural Dev.
