Fig. 5

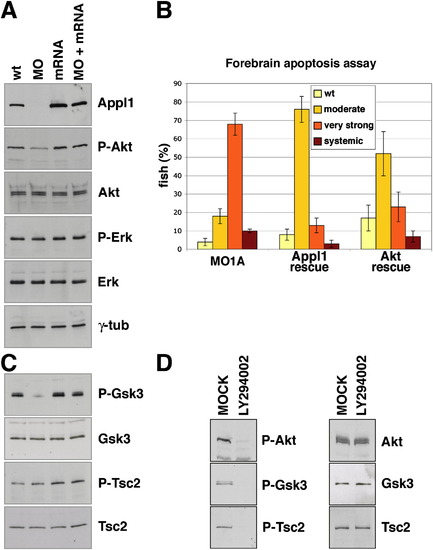

Appl1 Regulates Akt Activity, Akt Substrate Specificity, and Akt-Dependent Survival in Zebrafish Development
(A) Western blot analyses of Akt and MAPK level and activity in WT, Appl1 knockdown (MO: 8 ng MO1A), Appl1 overexpressing (mRNA: 75 pg appl mRNA), and rescued embryos (MO + mRNA: 8 ng MO1A + 75 pg appl mRNA).
(B) Forebrain apoptosis assay: Quantitative evaluation of apoptosis in Appl1 knockdown embryos rescued by expression of Akt (Akt rescue: 8 ng MO1A + 100 pg Akt2 mRNA). Embryos were assigned to one of the four indicated cell death categories. Evaluation of Appl1 knockdown and appl1 mRNA-rescued embryos (Figure 4G) are shown for comparison. Total amount of embryos scored: n Akt rescue = 396. Error bars indicate standard deviation (SD) amongst five experiments.
(C) Western blot analyses on the same fish extracts analyzed in panel (A) monitoring level and activity of Gsk-3β and Tsc2.
(D) Western blot analyses of MOCK and LY294002-treated fish. (Ser9)-Gsk-3β and (Thr1462) phosphorylation critically depends on Akt activity.
(A–D) Experiments have been carried out on 54 hr zebrafish embryos.

Expression Data
Gene:
Antibodies:
Fish:
Condition:
Knockdown Reagent:
Anatomical Term:
Stage: Long-pec

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagent:
Observed In:
Stage: Long-pec

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Cell, 133(3), Schenck, A., Goto-Silva, L., Collinet, C., Rhinn, M., Giner, A., Habermann, B., Brand, M., and Zerial, M., The endosomal protein Appl1 mediates Akt substrate specificity and cell survival in vertebrate development, 486-497, Copyright (2008) with permission from Elsevier. Full text @ Cell
