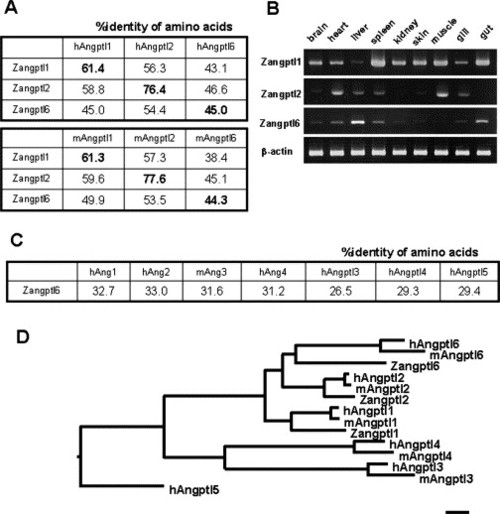

Molecular cloning of Zangptl1, Zangptl2 and Zangptl6. (A) Percentages of amino acid identity of Zangptl1, Zangptl2 and Zangptl6 to human (upper panel), and mouse (lower panel) counterparts. (B) RT-PCR analysis of Zangptl1, Zangptl2 and Zangptl6 expression in adult tissues. Zangptl1 was expressed broadly in various tissues and abundantly in spleen, muscle and gut. Zangptl2 was abundantly expressed in heart and skeletal muscle. Zangptl6 was predominantly expressed in liver and gut. β-Actin expression served as an internal control of template cDNAs. (C) Percentages of amino acid similarities of Zangptl6 to human Ang1, 2 and 4, mouse Ang3 and human Angptl3, 4 and 5. No other mammalian Angs or other Angptls were more closely related to Zangptl6 than mammalian Angptl1, Angptl2 and Angptl6. (D) Phylogenetic relationships among Angptls and Angs. The tree was constructed by using the Megalign program of DNAstar (based on Jotun Hein Method). h, human; m, mouse. Bar indicates 1000 nucleotides. |
| Genes: | |
|---|---|
| Fish: | |
| Anatomical Terms: | |
| Stage: | Adult |
Reprinted from Gene expression patterns : GEP, 5(5), Kubota, Y., Oike, Y., Satoh, S., Tabata, Y., Niikura, Y., Morisada, T., Akao, M., Urano, T., Ito, Y., Miyamoto, T., Watanabe, S., and Suda, T., Isolation and expression patterns of genes for three angiopoietin-like proteins, Angptl1, 2 and 6 in zebrafish, 679-685, Copyright (2005) with permission from Elsevier. Full text @ Gene Expr. Patterns
