Fig. 1

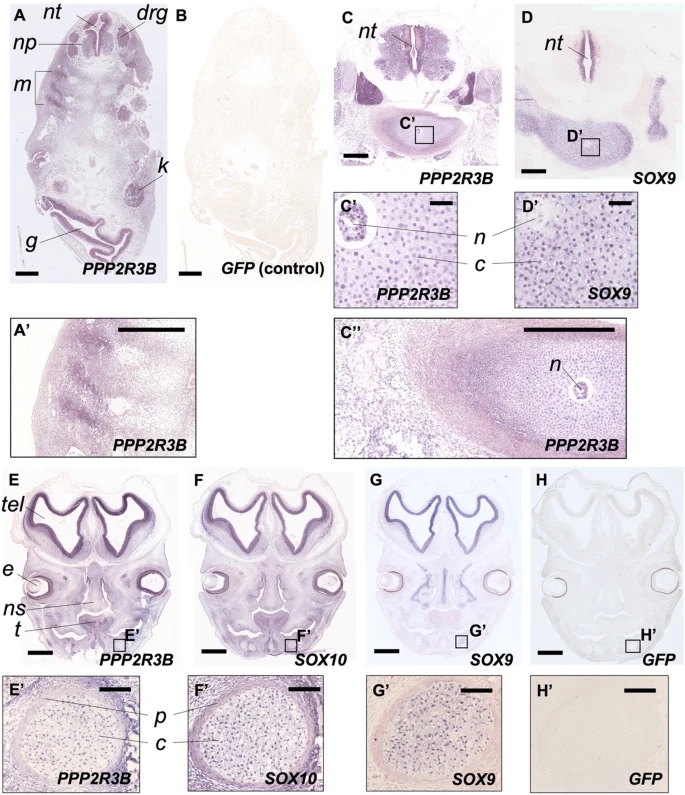

PPP2R3B is expressed at sites of chondrogenesis in normal human foetuses. Expression of PPP2R3B, SOX9 and SOX10 in normal human foetuses at Carnegie stages (CS) 17 (A, B) 23 (C, D) and 22 (E–H). (A, B) In situ hybridisation at low power showing expression of PPP2R3B within interneuron/motor neuron precursors (np), dorsal root ganglia (drg) and myotome (m) but no signal generated using a GFP negative control. (C, D) Expression of PPP2R3B in vertebral bodies. Insets show regions magnified in C’ and D’. Note expression in chondrocytes (c). PPP2R3B is also expressed in the notochord (n) whereas SOX9 is not. (E–H) Expression of PPP2R3B within Meckel’s cartilage (insets magnified in E’–H’). Note expression co-localises with SOX10 and SOX9 within chondrocytes (c) but expression is absent from perichondrium (p). nt, neural tube; g, gut; k, kidney; tel, telencephalon; e, eye; ns, nasal septum; t, tongue. Scale bars are 500 µm in (AD, A’, C’); 60 µm in (C’, D’); 1 mm (EH); 10 µm in (E’–H’).
